55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
جزئیات محصول:
| محل منبع: | گوانگدونگ ، چین |
| نام تجاری: | JINTONG |
| شماره مدل: | JTT-550R |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 قطعه |
|---|---|
| قیمت: | $19,000-21,000 / piece |
|
اطلاعات تکمیلی |
|||
| ظرفیت پلاستیک سازی: | 150 گرم در ثانیه | ارتفاع قالب: | 160 - 300 میلی متر |
|---|---|---|---|
| شماره اجکتور: | 2 | سکته مغزی: | 60 میلی متر |
| نیروی اجکتوری: | 1.8 kN | حجم شات نظری: | 170 سانتی متر مربع |
| میزان تزریق: | 113 گرم در ثانیه | وزن تزریق: | 141 گرم |
| سرعت: | 0 - 215 دور در دقیقه | قطر پیچ: | 40 میلی متر |
| نسبت L/D پیچ: | 22 | فاصله بین میله های کراوات: | 510 میلی متر |
| وزن: | 2400 کیلوگرم | باز کردن سکته مغزی: | 540 میلی متر |
| قدرت: | 12.8 کیلو وات | ||
| برجسته کردن: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
توضیحات محصول
Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description

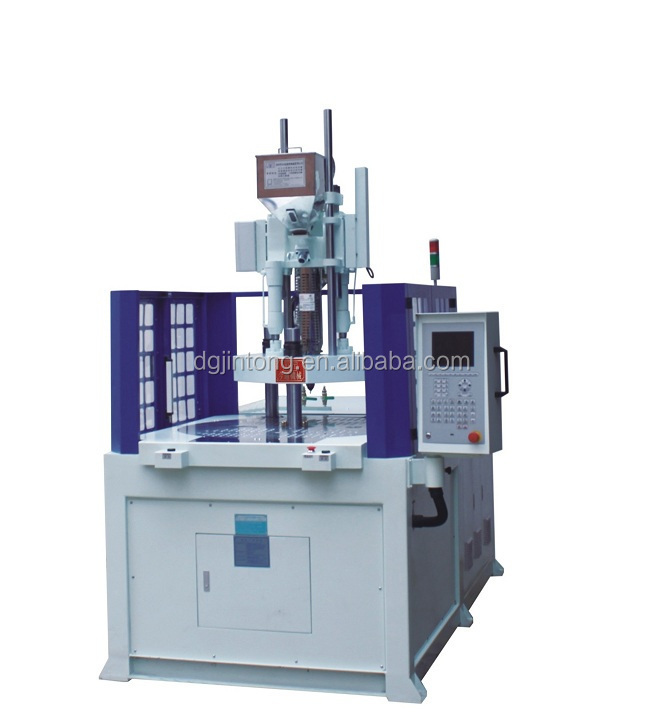

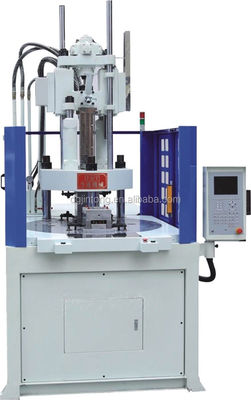

Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
