Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity
جزئیات محصول:
| محل منبع: | گوانگدونگ ، چین |
| نام تجاری: | JINTONG |
| شماره مدل: | JTT-1200R |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 قطعه |
|---|---|
| قیمت: | $32,000-40,000 / piece |
|
اطلاعات تکمیلی |
|||
| پلاستیکی فرآوری شده: | PP، ABS | ظرفیت پلاستیک سازی: | 250 گرم در ثانیه |
|---|---|---|---|
| ارتفاع قالب: | 150 - 520 میلی متر | شماره اجکتور: | 2 |
| سکته مغزی: | 75 میلی متر | نیروی اجکتوری: | 27 کیلونیوتن |
| حجم: | 410 سانتی متر مربع | میزان تزریق: | 202 گرم در ثانیه |
| وزن تزریق: | 369 گرم | سرعت: | 1 - 220 دور در دقیقه |
| قطر پیچ: | 50 میلی متر | پیچ L/D: | 25 |
| فاصله نوار کراوات: | 620 میلی متر | وزن ماشین: | 5500 کیلوگرم |
| قدرت: | 24.5 کیلو وات | ||
| برجسته کردن: | 2 Stations Vertical Injection Molding Machine,3 Stations Rotary Table Injection Molding Machine,250g/s Plasticizing Capacity Injection Molding Machine,3 Stations Rotary Table Injection Molding Machine,250g/s Plasticizing Capacity Injection Molding Machine |
||
توضیحات محصول
Rotary Table Vertical Plastic Injection Molding Machine 120T

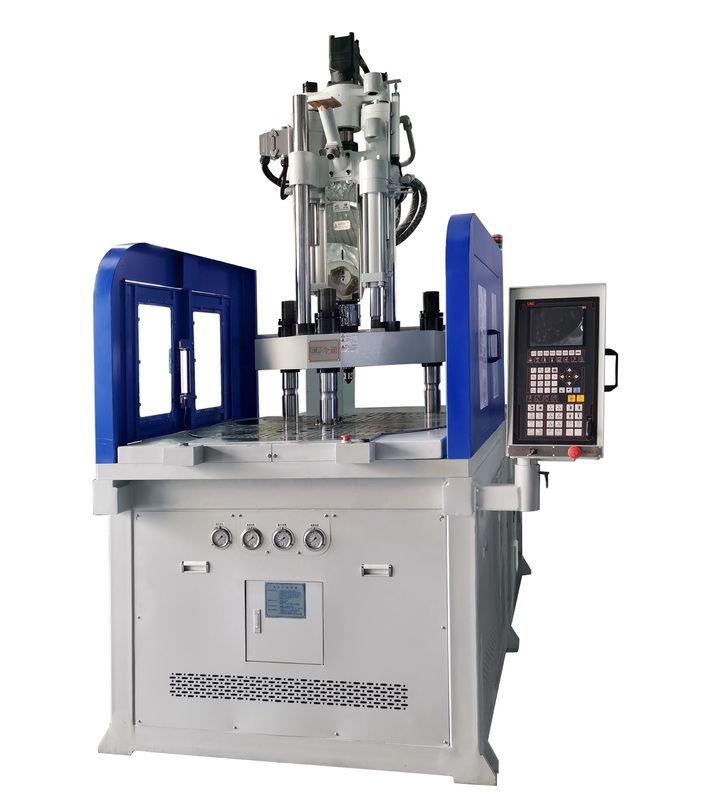

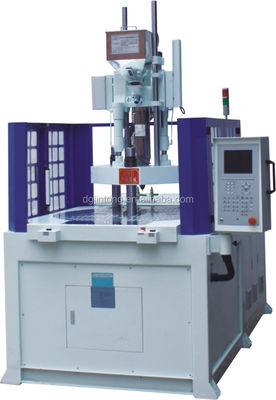

Rotary table vertical injection molding machine JTT-1200R
| Clamping Force | 120T |
| Injection Weight | 237-369g |
Vertical clamping, vertical injection. Easy to set torque, speed, deceleration distance and stand number segmentation. Computer program control for rotary table direction including forward-rotating, reverse-rotating, and forward/reverse alternative rotating. Optional energy-saving motor available.
Main Features
- Vertical clamping and vertical injection design
- Adjustable clamping force, injection weight and shot speed to meet production requirements
- Available in 2-station, 3-station or multi-station configurations (one up die, two or four down die)
- Optimized for operating insert parts and improving productivity
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Reduces cooling water quantity by at least 55% compared to similar models
- Low noise: Optimized motor operation with imported bearing and oil pump reduces working noise by 15-20db
- Precision: Fully closed-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.
