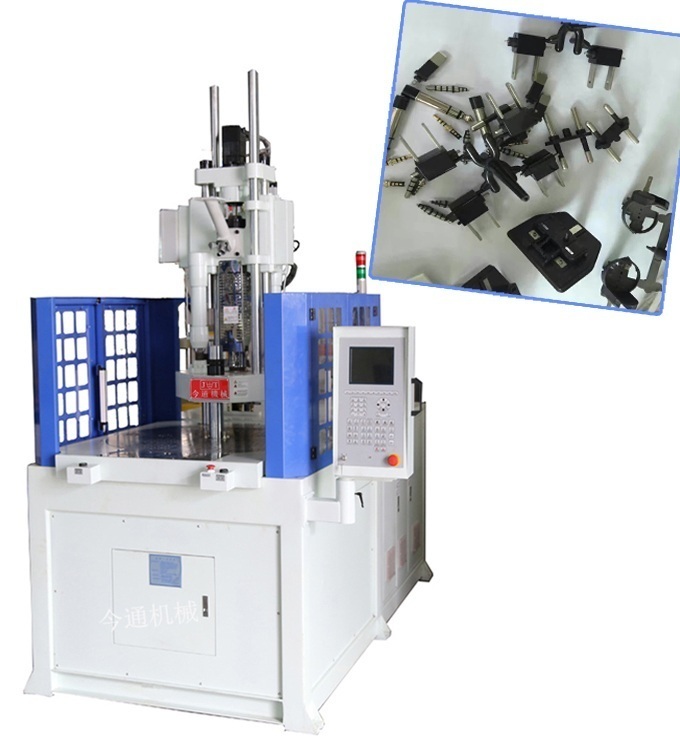

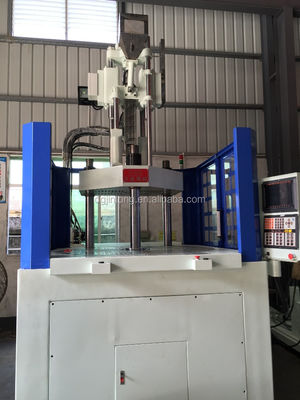

Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume
جزئیات محصول:
| محل منبع: | گوانگدونگ ، چین |
| نام تجاری: | JINTONG |
| شماره مدل: | JTT-850R |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 قطعه |
|---|---|
| قیمت: | $26,000-27,000 / piece |
|
اطلاعات تکمیلی |
|||
| ظرفیت پلاستیک سازی: | 180 گرم در ثانیه | ارتفاع قالب: | 110 تا 450 میلی متر |
|---|---|---|---|
| شماره اجکتور: | 2 | سکته مغزی: | 75 میلی متر |
| نیروی اجکتوری: | 33 کیلونیوتن | حجم شات نظری: | 276 سانتی متر مربع |
| میزان تزریق: | 167 گرم در ثانیه | وزن تزریق: | 330 گرم |
| سرعت: | 1 - 200 دور در دقیقه | قطر پیچ: | 50 میلی متر |
| نسبت L/D پیچ: | 25 | فاصله بین میله های کراوات: | 560 میلی متر |
| وزن: | 4000 کیلوگرم | باز کردن سکته مغزی: | 500 میلی متر |
| قدرت: | 21.6 کیلو وات | ||
| برجسته کردن: | 85T Vertical Injection Molding Machine,33 kN Ejector Force Rotary Injection Molding Machine,276 cm³ Theoretical Shot Volume Plastic Injection Molding Machine,33 kN Ejector Force Rotary Injection Molding Machine,276 cm³ Theoretical Shot Volume Plastic Injection Molding Machine |
||
توضیحات محصول
Full-auto Vertical Rotary Injection Molding Machine 85T
Product Description
Model: JTT-850R
Clamping Force: 85T
Injection Weight: 165-272g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction (forward-rotating, reverse-rotating, forward and reverse alternative rotating)
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be adjusted according to actual demand
- Available in 2 stations, 3 stations, or multi-station configurations (one up die, two or four down die)
- Easy operation for insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Saves 55% cooling water quantity compared to similar products
- Low noise: Optimized motor working condition with imported bearing and oil pump reduces noise by 15-20db
- Precision: Complete close-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
17 years of customer service experience with a systematic and standardized service process. We maintain a 24-hour response mechanism to promptly solve customer problems and provide excellent service.
Packing & Delivery
